Memmert Waterbath WTB15 is ideal for the temperature control of ointments, emulsions, samples, plates and nutrient solutions in the laboratory, as well as warm storage and calibration in the industrial segment.
digital temperature sensor, mounted on the outside of the bath
Temperature
Setting Celsius / Fahrenheit
Working temperature range
at least 5 above ambient to +100 (with cover, depending on ambient pressure)
Setting temperature range
+10 to +100 °C
Setting accuracy temperature
0.1 °C
Control technology
Calibration
2-point calibration
Controller
intuitive 3.5″ colour graphic display with touch screen
Controller
digital display of set and actual temperature and of (remaining) programme time
Safety
Temperature control
two-stage safety system to prevent overtemperature
Temperature control
individually adjustable overtemperature alarm, visual and acoustic
Temperature control
Independent temperature limiter to switch off the heating in case of failure
Autodiagnostic system
microprocessor PID-temperature controller with integrated autodiagnostic system with
fault indicator
Heating concept
Heating
corrosion-proof large-area heating on the outside of the interior
Standard equipment
Cover
Stainless steel gable cover
Drain system
innovative drain system – easy to empty
Timer
digital timer from 1 min. up to 99 hours 59 min., visual and acoustic
Stainless steel interior
Interior
Deep-drawn stainless steel tray (stainless steel W.St. 1-4301), without corners and edges for easy cleaning incl. central drain (no disturbing installations)

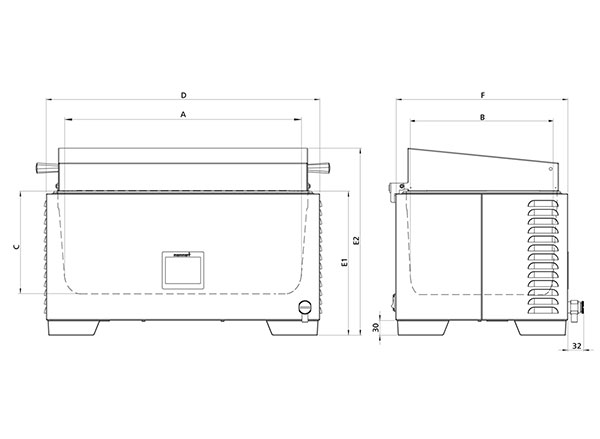

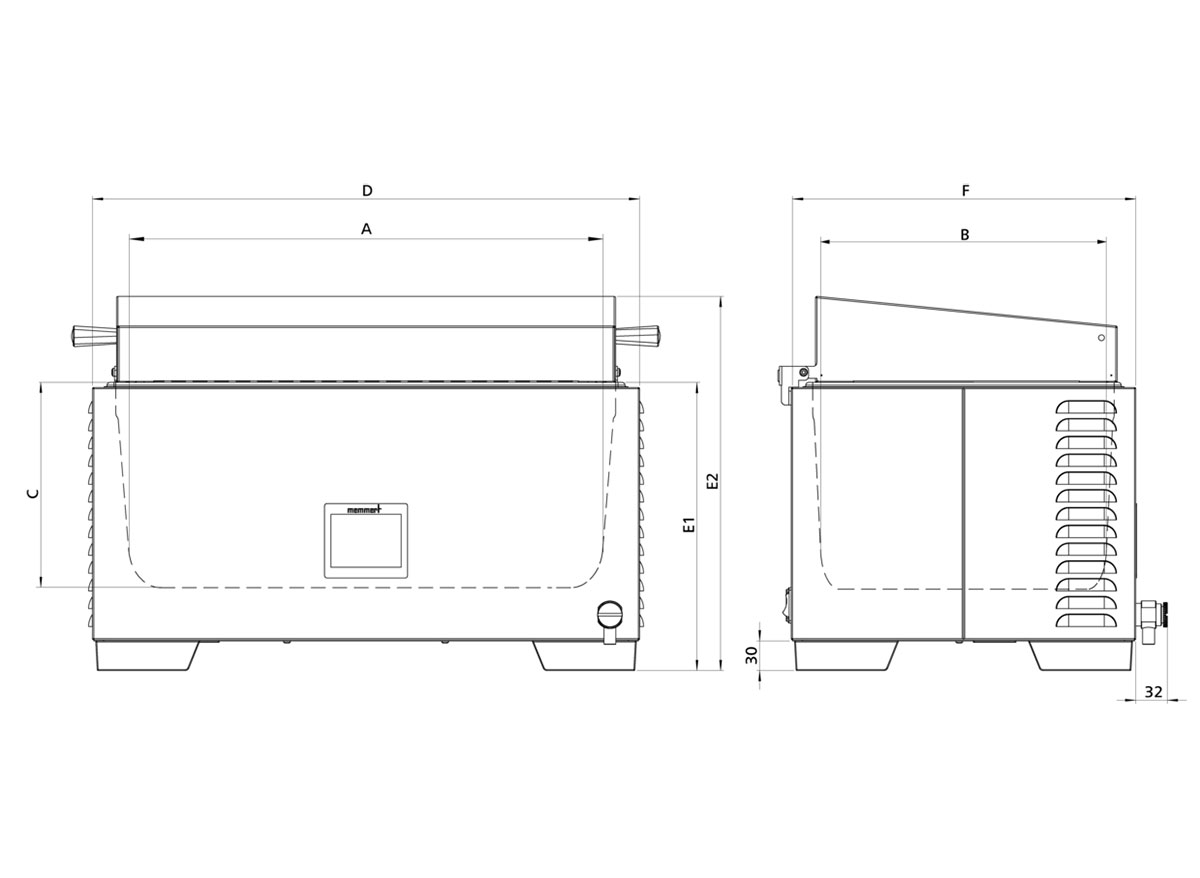

Dimensions W x H x D in mm
w(A) x h(C) x d(B): 482 x 150 x 277 mm
Volume
17 l
Liquid level min.
20 mm
Liquid level max.
114 mm
Textured stainless steel casing
Dimensions
w(D) x h(E2) x d(F): 554 x 348 x 349 mm
Electrical data
Voltage
Electrical load
230 V, 50/60 Hz approx. 1420 W
Ambient conditions
Installation
The vent openings in the left and back side must remain unobstructed. Minimum wall spacing on all sides is 80 mm. The minimum spacing from the top of the bath to the next ceiling is 750 mm.
Ambient temperature
+5 °C to +40 °C
Humidity rh
max. 80 %, non-condensing
Overvoltage category
II
Pollution degree
2
Packing/shipping data
Transport information
The appliances must be transported upright
Customs tariff number
8419 8998
Country of origin
Federal Republic of Germany
WEEE-Reg.-No.
DE 66812464
Dimensions approx incl. carton
w x h x d: 670 x 530 x 400 mm
Net weight
approx. 9 kg
Gross weight carton
approx. 14 kg
Standard units are safety-approved and bear the test marks
